Capillary Pipes Tubes

Looking for trusted & approved suppliers in India for Stainless Steel Capillary Pipes Tubes, Complete technical info for buyer of Stainless Steel Capillary Pipes Tubes

Manufacturers of Stainless Steel Capillary Pipes Tubes in India

Suppliers of Stainless Steel Capillary Pipes Tubes in Indonesia, Malaysia, Singapore, UAE, Saudi Arabia, Uman, Qatar, Turkey, Egypt, South Africa, UK, Nigeria, Kenya, Canada

Stainless Steel Capillary Pipes Tubes Manufacturer




Stainless Steel Capillary Pipes Tubes Specification

1. Grade : 310S, 321,304/ 304L, 316L, 309, etc
2. O.D : 0.3 –12.0 mm
3. W.T : 0.08 – 0.2 mm
4. Length : As for your requirement
5. Standard : ASTM, GB, AISI, JIS, DIN, etc
6. Delivery Time : 10~50 days ,according to customer’s quantity
7. Delivery Condition : Pickled, polished, bright annealed, electrolytic polished
8. Package : Plastic bag for each bundle or as for your requirement.



Range of Stainless Steel Capillary pipes and tubes :
0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.

Type:
Seamless / Erw / Welded/ Semi-seamless / Fabricated

Grade of stainless steel capillary pipes & tubes:
304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Non-Ferrous Capillary pipes & tubes:
Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

Form :
Round, Strait, Hydraulic etc.

Length :
Single Random, Double Random , Coil Form, Cut Length

End :
Plain End, Bevelled End




The range includes:
Copper Capillary Tubes available sizes and dimension
1.5mm to 3 mm OD in thickness ranging from 0.3mm to 0.6mm

Copper Capillary Tubes Chemical Composition
DHP Copper Phosphorus - 0.015 to 0.035 %
  Copper - Balance
DLP Copper Phosphorus - 0.05 to 0.012 %
  Copper - Balance
TEMPER H, HH. ¼ H, O (soft annealed ),
  OL (Light annaealed)


Gauge 		Outside Diameter Tolerance mm Regular Wall (RW) mm Thin Wall (TW) mm Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm
30 0.304 - 0.317 0.064 - 0.089
29 o.330 - 0.342 0.064 - 0.089
28 0.355 - 0.368 0.076 - 0.102
27 0.406 - 0.419 0.089 - 0.115 0.064 - 0.089
26 0.457 - 0.469 0.089 - 0.114
25 0.508 - 0.520 0.115 - 0.140 0.089 - 0.114
24 0.558 - 0.571 0.114 - 0.140 0.089 - 0.114 0.051 - 0.102
23 0.635 - 0.647 0.140 - 0.165 0.089 - 0.114 0.051 - 0.102
22 0.711 - 0.723 0.140 - 0.165 0.096 - 0.121 0.077 - 0.102 0.051 - 0.102
21 0.812 - 0.825 0.140 - 0.165 0.102 - 0.127 0.051 - 0.102
20 0.901 - 0.914 0.108 - 0.165 0.108 - 0.134
19 1.054 - 1.079 0.166 - 0.216 0.102 - 0.140 0.070 - 0.108
18 1.257 - 1.282 0.191 - 0.241 0.127 - 0.165 0.083 - 0.121 0.051 - 0.102
17 1.460 - 1.485 0.177 - 0.229 0.115 - 0.152 0.083 - 0.127 0.057 - 0.102
16 1.638 - 1.663 0.204 - 0.254 0.127 - 0.165 0.096 - 0.133 0.070 - 0.121
15 1.816 - 1.841 0.204 - 0.254 0.127 - 0.165 0.096 - 0.134 0.070 - 0.121
14 2.082 - 2.133 0.216 - 0.292 0.165 - 0.229 0.114 - 0.165 0.076 - 0.134
13 2.387 - 2.438 0.267 - 0.343 0.191 - 0.267
12 2.743 - 2.749 0.267 - 0.321
11 3.023 - 3.073 0.293 - 0.368 0.216 - 0.292
10 3.378 - 3.429 0.318 - 0.394 0.216 - 0.292

N.B (a) Any intermediate size can be made on request.
  (b) All Sizes will be supplied in sufficiently hard condition and tested for the stiffness.

Packaging & Shipping

Utmost care is taken towards Packing of the Stainless Steel Capillary Pipes Tubes so as to ensure that the resultant Coils, Foils, Tubes, Pipes and Fittings reach in the same condition as desired by our valued customers.
Packing specifications for various products are :

  • Larger Dia Fusion Welded Pipes are packed with aluminium end caps in a wooden crates.
  • S.S. Automotive Exhaust Pipes & Scheduled pipes both are packed with plastic end caps in wooden crates.
  • Cold Drawn Seamless Stainless Tubes are packed with plastic end caps in a wooden box with an inside thermocoal covering.
  • Coils and Foils are packed in wooden crates.

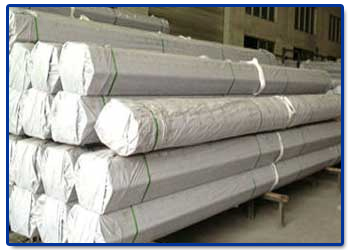

Stainless Steel Capillary Pipes Tubes Packaging

Stainless Steel Capillary Pipes Tubes Packaging

Stainless Steel Capillary Pipes Tubes Packaging

Packed Stainless Steel Capillary Pipes Tubes

Other Packaging Information :
  • Bundle Packing
  • Bundle Packing
  • Wooden Case
  • Wooden Case
  • Wooden Case for U Tubes
  • Reinforced by angle bar



Why us ?

  • Stainless Steel Capillary Pipes Manufacturer & Exporter since 2004
  • The annual capacity of the plant equals about 8.000 tons
  • Specialized in Pipes & Tubes, Stainless Steel Pipe & Carbon Steel Pipe
  • We export Stainless Steel Capillary Pipes everywhere in the world
  • We have our own warehouse of 10,000 feet, so we can offer Stainless Steel Capillary Pipes best price in the market

Heilights :

  • Pipes up to 24" made in continuous production from coil
  • Pipes up to 80" made from single plates
  • Maximum thickness 40 mm

Strength :

  • Contacts with major mills & stockists around the world.
  • Can offer ex-stock materials as well as mill delivery with nominal margins.
  • Complete in-house testing facilities viz. hydro, eddy current, UT, chemical analysis,
  • physical/mechanical, PMI, microscopic examination, etc…
  • Prime and genuine materials with co-relating original test certificates.

Available Stock at Prime Tube Impex

Pipes & Tubes Stock At a Glance:-
Pipe Gradewise Stock At a Glance:-
Tube Gradewise Stock At a Glance:-
Nickel Alloys Pipes & Tubes Stock At a Glance:-
Top Sellers Pipes & Tubes At a Glance:-
List of Countries where Prime Tube Impex supply Stainless Steel Capillary Pipes Tubes:-
List of Countries where Prime Tube Impex supply Pipes / Tubes :-

Please note:
ASTM A312 / A312M - 13 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
