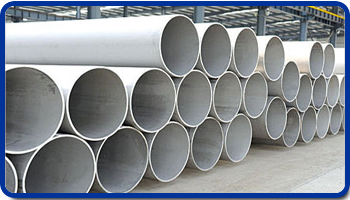

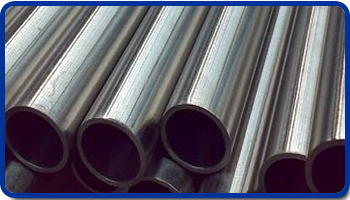

904 L ASTM B 677 Pipes and Tubing |
904 L ASTM B 677 Pipes and Tubing |
Stainless Steel | ASTM A312 TP 304/L/H, 310/H, 316/L/H, 316Ti, 321/H, 347/H, 904L; ASTM A213, ASTM A269, ASTM A271, ASTM A376, ASTM B677 |
Alloy Steel | ASTM A335 P1, P5, P9, P11, P12, P22, P91, ASTM A161, ASTM A199, ASTM A200, ASTM A209, ASTM A213, ASTM A423 |
Carbon Steel | A106 Gr. B/C, ASTM A53, ASTM A161, ASTM A179, ASTM A192, ASTM A210, ASTM A556, API 5L Gr. B |
Low Temperature | ASTM A333, ASTM A334 |
Duplex/ Super duplex | ASTM A789, ASTM A269 |
Ferritic - Martenitic steel | ASTM A268 |
Titanium | ASTM B338, ASTM B861 |
Nickel & Nickel Alloys | ASTM B161, ASTM B163, ASTM B165, ASTM B167, ASTM 407, ASTM B423, ASTM B444, ASTM B622, ASTM B668, ASTM B729 |
Aluminium & Aluminium Alloy | ASTM B210, ASTM B234, ASTM B241 |
Copper & Copper Alloy | ASTM B43, ASTM B68, ASTM B75, ASTM B88, ASTM B111, ASTM B315, ASTM B395, ASTM B466 |
Other properties included:
- Good resistance to pitting and crevice corrosion ability
- High resistance to stress corrosion cracking capacity
- Good resistance to intergranular corrosion ability
- Good machinability and weldability
This grade is non-magnetic in all conditions and has excellent weldability and formability. The austenitic structure also gives this grade excellent toughness, even down to cryogenic temperature.
Corrosion Resistance
Although originally developed for its resistance to sulphuric acid it also has a very high resistance to a wide range of environments.
Welding
904L can be successfully welded by all standard methods.
Fabrication
904L is a high purity, low sulphur grade, and as such will not machine well. Despite this the grade can be machined using standard techniques.
Chemical Composition
Table 1. Composition ranges for 904L grade of stainless steel.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
904L | min. max. | - 0.020 | - 2.00 | - 1.00 | - 0.045 | - 0.035 | 19.0 23.0 | 4.0 5.0 | 23.0 28.0 | 1.0 2.0 |
Mechanical Properties
Table 2. Mechanical properties of 904L grade stainless steel.
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) | Brinell (HB) | ||||
904L | 490 | 220 | 35 | 70-90 typical | - |
Rockwell Hardness value range is typical only; other values are specified limits. |
Physical Properties
Table 3. Typical physical properties for 904L grade stainless steel tube.
Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
0-100°C | 0-315°C | 0-538°C | At 20°C | At 500°C | |||||
904L | 8000 | 200 | 15 | - | - | 13 | - | 500 | 850 |
Grade Specification Comparison
Table 4. Grade specifications for 904L grade stainless steel tubes.
Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
BS | En | No | Name | ||||
904L | N08904 | 904S13 | - | 1.4539 | X1NiCrMoCuN25-20-5 | 2562 | - |
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted. |
Possible Alternative Grades
Table 5. Possible alternative grades to 904L stainless steel tubing.
Grade | Why it might be chosen instead of 904L |
316L | A lower cost alternative, but with much lower corrosion resistance. |
6Mo | A higher resistance to pitting and crevice corrosion resistance is needed. |
2205 | A very similar corrosion resistance, with the 2205 having higher mechanical strength, and at a lower cost to 904L. (2205 not suitable for temperatures above 300°C.) |
Super duplex | 2507 has an higher corrosion resistance is needed, together with a higher strength than 904L. |
Utmost care is taken towards Packing of the 904 L ASTM B 677 Pipes and Tubing so as to ensure that the resultant Coils, Foils, Tubes, Pipes and Fittings reach in the same condition as desired by our valued customers.
Packing specifications for various products are :
904 L ASTM B 677 Pipes and Tubing Packaging |

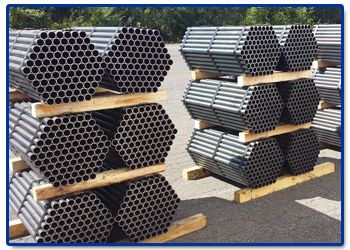

Packed 904 L ASTM B 677 Pipes and Tubing |
