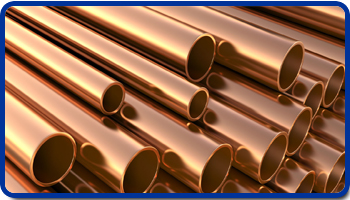

ASTM B 466 - B 467 Cupro Nickel Tubes |
ASTM B 466 - B 467 Cupro Nickel Tubes |
Copper Nickel tubes, 30% – C71500 - has, in general, the best resistance of any of the copper alloys to impingement attack and to corrosion from most acids and waters. It is being used in severe corrosive conditions in which service lives longer than those of other copper alloys are desired.
This form of cupro nickel tubes produced by Tube Tech possess excellent resistance to corrosion by sea water as well as high resistance to erosion corrosion and air-impingement attack. The addition of iron results in 90/10 performing as good as 70/30 in salt water service heat exchangers
Dimensional Range
Outer Diameter - 4.00 to 22.00 mm
Wall Thickness - Between 0.15mm and 1.50 mm
Length upto 6 mtrs
End Applications
Heat Exchangers, Oil Coolers, Distiller Tubes, Radiators, High Capacity Power Plants, Shipoing building company & Ship Repairs, Condensers, Offshore Oil rigs industries, Evaporators, Ferrules etc.
This specification covers welded copper-nickel alloy pipes produced from Copper Alloy UNS Nos. C70600 and C71500 for general engineering applications. Pipes may be produced in any one of the following tempers: as-welded from annealed sheets, strips, or plates (WM50); as-welded from cold-worked sheets, strips, or plates (WM00, WM01, WM02, and so forth); welded and annealed (WO50); welded, light cold drawn (WR00) or hard cold drawn (WR04), and stress relieved; or fully finished as annealed, light drawn (WH00) or hard drawn (WH04), and stress relieved.
Standards | ||||||
Cupro Nickel Tube90/ 10 | Standard | BS2871part3 | ASTM B-111 | IS 1545 | JIS H 3300 | NFA 51 102 |
Symbol | CN 102 | C 70600 | CuNi10Fe1 | C7060 | CuNi10Fe1Mn | |
Cupro Nickel Tubes 70/30 | Standard | BS2871part3 | ASTM B-111 | IS 1545 | JIS H 3300 | NFA 51 102 |
NFA 51 102 | CN 107 | C 71500 | CuNi30Mn1Fe | C 7150 | CuNi30Mn1Fe |
UNS No. | C71500 – BSI No. CN107 – ISO Name CuNi30Mn1Fe |
Chemical Comp. (%) | Cu rem / Ni 29 ~ 33 / Pb 0.05 / Fe 0.40 ~ 1 / Zn 1 max |
ASTM Spec. | B 111, B 359, B395, B 466, B 467, B 543, B 552 |
ASME Spec. | SB 111, SB 395, SB 466 |
Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing; Salt Water piping. |
Temper | O61 Annealed / HR50 Drawn & Stress Relieved |
Properties * | Metric | English |
Density | 8.94 g/cc | 0.323 lb/in³ |
Tensile Strength min.- O61 -/- HR50 | 360 MPa -/- 495 MPa | 52 ksi -/- 72 ksi |
Yield Strength min.- O61 -/- HR50 | 125 MPa -/- 345 MPa | 18 ksi -/- 50 ksi |
CTE, linear | 16.2 10-6/°C @ 20.0 – 300 °C | 9.0 10-6/°F @ 70.0 – 570 °F |
Specific Heat Capacity | 0.09 cal/g-°C @ 20ºC | 0.09 BTU/lb-°F @ 70ºF |
Thermal Conductivity | 29 W/m-K @ 20.0 °C | 17 BTU/ft2/ft/h/°F @ 70.0 °F |
Melting Point | 1171 – 1238 °C | 2140 – 2260 °F |
Dimension Tolerance | |||||
Material | Ultimate Tensile Strength1000 psi (MPa) | Yield Strength 0.5% Ext.under Load 1000 psi (MPa) | YElongation % in 2 in. | Fatigue Strength (10x7 cycles) 1000 psi (MPa) | Burst Pressure* 1000 psi (MPa) |
Copper-brazed Steel | 48-55 (0.330-0.380) | 28-34 (0.190-0.235) | 30-40 | 30 ( 0.210) |
19.5 (0.135) |
C12200-Phosphorus deoxidized Copper | 32-38 (0.220-0.265) | 10-14 (0.070-0.100) | 45-60 | 10 (0.070) |
12 ( 0.083) |
C70600-Copper Nickel 90-10 | 48-54 (0.330-0.370) | 16-22 (0.110-0.150) | 40-55 | 15 (0.100) |
19 ( 0.130) |
This specification establishes the requirements for welded copper-nickel alloy pipe for general engineering purposes. The following alloys are covered :
Copper Alloy UNS No. |
Type of Metal |
C70600 | 90-10 copper-nickel |
C70620 | 90-10 copper-nickel |
(Modified for Welding) | |
C71500 | 70-30 copper-nickel |
C71520 | 70-30 copper-nickel |
(Modified for Welding) |
Cupro Nickel Pancake Coils
Copper-nickel brake tubing provides superior reliability and assures both manufacturers and vehicle owners improved durability for effective long-life functioning of the brake system.Coils Available in 5 mtr, 10 mtr & 15mtrs.
Copper Nickel tubes, 10% – C70600 - exhibits excellent resistance to impingement attack. It is also highly resistant to SCC. This alloy is suitable for Marine condenser tube installations in place of Aluminum Brass, especially where higher water velocities are encountered.
UNS No. | C70600 – BSI No. CN102 – ISO Name CuNi10Fe1Mn |
Chemical Comp. (%) | Cu rem / Ni 9 ~ 11 / Pb 0.05 / Fe 1 ~ 1.8 / Zn 1 max / Mg 1 max |
ASTM Spec. | B 111, B 395, B 466, B 552 |
ASME Spec. | SB 111, SB 395, SB 466 |
Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing; Salt Water piping. |
Temper | O61 Annealed / H55 Light-Drawn |
Properties * | Metric | English |
Density | 8.94 g/cc | 0.323 lb/in³ |
Tensile Strength min.- O61 -/- H55 | 275 MPa -/- 310 MPa | 40 ksi -/- 45 ksi |
Yield Strength min.- O61 -/- H55 | 105 MPa -/- 240 MPa | 15 ksi -/- 35 ksi |
CTE, linear | 17.1 10-6/°C @ 20.0 – 300 °C | 9.5 10-6/°F @ 70.0 – 570 °F |
Specific Heat Capacity | 0.09 cal/g-°C @ 20ºC | 0.09 BTU/lb-°F @ 70ºF |
Thermal Conductivity | 45 W/m-K @ 20.0 °C | 26 BTU/ft2/ft/h/°F @ 70.0 °F |
Melting Point | 1099 – 1149 °C | 2010 – 2100 °F |
Copper Nickel tubes, 30% – C71500 - has, in general, the best resistance of any of the copper alloys to impingement attack and to corrosion from most acids and waters. It is being used in severe corrosive conditions in which service lives longer than those of other copper alloys are desired.
UNS No. | C71500 – BSI No. CN107 – ISO Name CuNi30Mn1Fe |
Chemical Comp. (%) | Cu rem / Ni 29 ~ 33 / Pb 0.05 / Fe 0.40 ~ 1 / Zn 1 max |
ASTM Spec. | B 111, B 359, B395, B 466, B 467, B 543, B 552 |
ASME Spec. | SB 111, SB 395, SB 466 |
Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing; Salt Water piping. |
Temper | O61 Annealed / HR50 Drawn & Stress Relieved |
Properties * | Metric | English |
Density | 8.94 g/cc | 0.323 lb/in³ |
Tensile Strength min.- O61 -/- HR50 | 360 MPa -/- 495 MPa | 52 ksi -/- 72 ksi |
Yield Strength min.- O61 -/- HR50 | 125 MPa -/- 345 MPa | 18 ksi -/- 50 ksi |
CTE, linear | 16.2 10-6/°C @ 20.0 – 300 °C | 9.0 10-6/°F @ 70.0 – 570 °F |
Specific Heat Capacity | 0.09 cal/g-°C @ 20ºC | 0.09 BTU/lb-°F @ 70ºF |
Thermal Conductivity | 29 W/m-K @ 20.0 °C | 17 BTU/ft2/ft/h/°F @ 70.0 °F |
Melting Point | 1171 – 1238 °C | 2140 – 2260 °F |
Specialize in : copper nickel; pipe; welded pipe; UNS No. C70600; UNS No. C70620; UNS No. C71500; UNS No. C71520; Copper alloy pipe--specifications; UNS C70600 (Cu-Ni)--pipe/tube (seamless/welded); UNS C71500--pipe/tube (seamless/welded); Welded Cu/Cu alloy pipe
Utmost care is taken towards Packing of the ASTM B 466 - B 467 Cupro Nickel Tubes so as to ensure that the resultant Coils, Foils, Tubes, Pipes and Fittings reach in the same condition as desired by our valued customers.
Packing specifications for various products are :

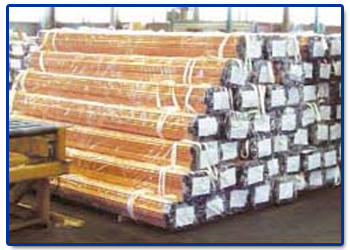

ASTM B 466 - B 467 Cupro Nickel Tubes Packaging |

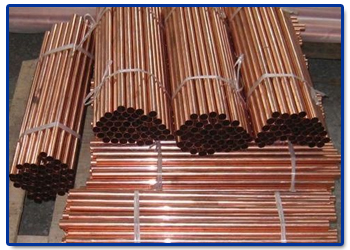

Packed ASTM B 466 - B 467 Cupro Nickel Tubes |
