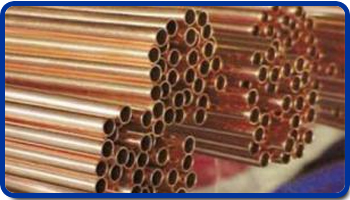

Copper Nickel Cu-Ni 90/10 Seamless Pipes & Tubes |

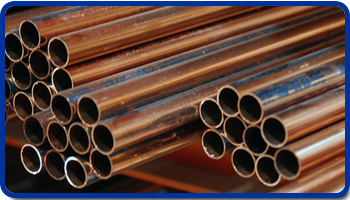

Copper Nickel Cu-Ni 90/10 Welded Pipes & Tubes |
Recent tests prove that 90-10 copper-nickel tube (UNS C70600) is superior to steel tubes when run through over 120 cycles. We offer our customers an excellent quality range of Cupro Nickel Tubes 90/10 For Automobile Industries.
Dimensional Range
Outer Diameter - 4.00 to 22.00 mm
Wall Thickness - Between 0.15mm and 1.50 mm
Length upto 6 mtrs
Cupro Nickel Tubes 90/10
This form of cupro nickel tubes produced by Tube Tech possess excellent resistance to corrosion by sea water as well as high resistance to erosion corrosion and air-impingement attack. The addition of iron results in 90/10 performing as good as 70/30 in salt water service heat exchangers. These tubes have good strength and ductility at ordinary temperatures and relatively high strength and other mechanical properties at elevated temperatures.
Standards | ||||||
Cupro Nickel Tube90/ 10 | Standard | BS2871part3 | ASTM B-111 | IS 1545 | JIS H 3300 | NFA 51 102 |
Symbol | CN 102 | C 70600 | CuNi10Fe1 | C7060 | CuNi10Fe1Mn | |
Cupro Nickel Tubes 70/30 | Standard | BS2871part3 | ASTM B-111 | IS 1545 | JIS H 3300 | NFA 51 102 |
NFA 51 102 | CN 107 | C 71500 | CuNi30Mn1Fe | C 7150 | CuNi30Mn1Fe |
Cupro Nickel Tubes 95/5 & 90/10 are used for Marine industries, these tubes are very important for all Industrial fields. Advance Steel & Tube Mills has experience in these areas more then 10 years and is able to supply these tubes in accordance with most international standards and special customer requirements. The trust-based relationships we have established with thousands of manufacturing companies and industry around the world for Curpo Nickel Tubes 95/5 & 90/10. Curpo Nickel Tubes 95/5 & 90/10 can be purchased worldwide through our International Distributor Network. We are committed to providing the highest quality Cupro Nickel Tubes.
We offer our customers an excellent quality range of Cupro Nickel Tubes 90/10 For Automobile Industries. Copper-nickel alloys have excellent resistance to marine corrosion and biofouling. Copper had been proved since the early days to have many good attributes. It was easy to bend and had very high corrosion resistance, but there was concern about its low corrosion-fatigue strength. When copper-nickel was introduced, it displayed corrosion resistance similar to copper, higher general strength and better fatigue strength. The trust-based relationships we have established with thousands of manufacturing companies and industry around the world for Curpo Nickel Tubes 95/5 & 90/10. Curpo Nickel Tubes 95/5 & 90/10 can be purchased worldwide through our International Distributor Network. We are committed to providing the highest quality Cupro Nickel Tubes. Recent tests prove that 90-10 copper-nickel tube (UNS C70600) is superior to steel tubes when run through over 120 cycles.
Copper-nickel alloys are widely used for marine applications due to their excellent resistance to seawater corrosion, high inherent resistance to biofouling and good fabricability.

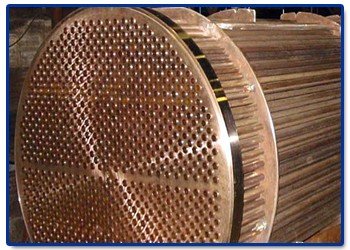

These Cupro Nickel tubes & pipes for Heat Exchangers & Condensers are very important for all Industrial fields. Advance Steel & Tube Mills has experience in these areas more then 10 years and is able to supply Cupro Nickel Tubes 90/10 Heat Exchangers & Condensers in accordance with most international standards and special customer requirements. Many manufacturer producing heat exchangers using standard & specialty alloys including cupro-nickel & nickel & nickel alloy.
Dimension Tolerance | ||||||||||||||||||||||||||||
Material | Ultimate Tensile Strength 1000 psi (MPa) |
Yield Strength 0.5% Ext.under Load 1000 psi (MPa) | YElongation % in 2 in. | Fatigue Strength (10x7 cycles) 1000 psi (MPa) | Burst Pressure* 1000 psi (MPa) | |||||||||||||||||||||||
Copper-brazed Steel | 48-55 (0.330-0.380) | 28-34 (0.190-0.235) | 30-40 | 30 (0.210) |
19.5 (0.135) |
|||||||||||||||||||||||
C12200-Phosphorus deoxidized Copper | 32-38 (0.220-0.265) | 10-14 (0.070-0.100) | 45-60 | 10 (0.070) |
12 (0.083) |
|||||||||||||||||||||||
C70600-Copper Nickel 90-10 | 48-54 (0.330-0.370) | 16-22 (0.110-0.150) | 40-55 | 15 (0.100) |
19 (0.130) |
Alloy C70600 is normally supplied as redrawn tubing in the annealed condition. The combination of strength and good ductility give excellent formability.
As copper-nickel is softer than steel, it was first feared that fretting might be a problem. Experience has shown this is not the case.
Chemical Properties |
|
Pb | 0.05 Max. |
Fe | 1.00 - 1.80 |
Mn | 1.00 Max. |
Zn | 1.00 Max. |
Mechenical Properties Light Drawn |
|
Flattening Test | Reqd. (After 'O') |
U.T.S. ksi | 45.00 Min |
Y.S. at 0.5% Ext. ksi | 35.00 Min. |
Annealed Temper |
|
Flattening Test | Reqd. |
Grain Size at 75 X mm Avg. | 0.010 - 0.045 |
U.T.S. ksi | 40.00 Min. |
Y.S. at 0.5% Ext. ksi | 15.00 Min. |
Chemical Properties |
|
Sn | 0.10 Max. |
Pb | 0.05 Max |
Ni | 4.00 - 5.00 |
Fe | 0.10 Max. |
Mn | 0.25 Max. |
As | 0.10 Max. |
Cu Ag | 95.00 - 96.000 |
Sb | 0.01 Max. |
Bi | 0.0025 Max. |
Mechenical Properties Annealed |
|
U.T.S. MPa | 216 - 275 (Strip cut from Ring Tube) |
%Elongation at 5.65Sq.Rt So G.L. | 40.00 Min. (Strip cut from Ring Tube) |
Flattening Test | Reqd. |
Bend Test | Reqd. (180 degree close) |
Utmost care is taken towards Packing of the ASTM B466 Cupro Nickel Tubes 90/10 so as to ensure that the resultant Coils, Foils, Tubes, Pipes and Fittings reach in the same condition as desired by our valued customers.
Packing specifications for various products are :
ASTM B466 Cupro Nickel Tubes 90/10 Packaging |
Packed ASTM B466 Cupro Nickel Tubes 90/10 |
